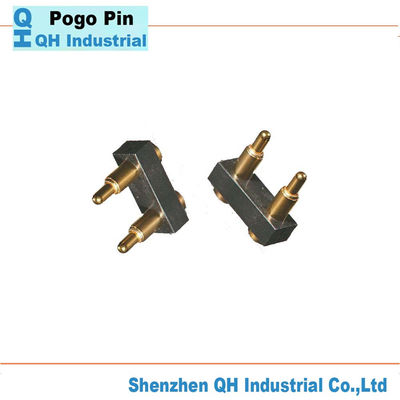

2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector

2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector

  • 2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector
  • 2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector
  • 2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector
  • 2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector
  • 2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector
  • 2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector
2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector
Product Details:
Place of Origin: Shenzhen
Brand Name: QH
Certification: ISO9001,CE,RoSH
Model Number: SMT,DIP,Double Heads,Screw,Rolling etc
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0.1 ~ 1 USD/pcs
Packaging Details: 1000 pcs/bag, or reel tape , or per customer demand
Delivery Time: 7~10 days
Payment Terms: T/T, Western Union
Supply Ability: 500,000 pcs / day
Contact Now
Detailed Product Description
Material: C3604 , SUS304,Gold Plating Length: 1.4mm To 20mm
Spring Force: 30gf To 200gf OEM/ODM: OK
Type: SMT,DIP,Double Heads,Screw,Rolling Etc Gold Plating: 1uin To 40uin
Current Rate: 1A To 10A Ristance: 50 MOhm
Dimension: Standard And Non-standard Application: TV, Computer,Tablet Etc

2Pin 2.54mm Pitch 4.5mm Length Pogo Pin Connector

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



Housing Dimension Table, Pitch can be as below.

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Pogo Pin can be SMT,DIP,Doubel Heads,Right Angle, Soldered ,Screw,Rolling types etc, drawings can be as below.



SMT Type

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Double Heads Pogo Pin

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

DIP Pogo Pin

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

High Current Rate Pogo Pin

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Right Angle Pogo Pin

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Female Pogo Pin

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Different type of pogo pin

http://www.pogopin-connectors.com/products.html

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



     Business Contact :  Yumi:

Cellphone & Wechat : 178 2073 0100

                                QQ:  3507 276 772

                           Skype: 178 2073 0100

                            email: QHpogopinconnectors@hotmail.com



Product Characteristics

Material Brass(C3604)
Color Gold
Size Depends on customer requirements
Type SMT
Plated Gold palted(10U")(can customized)
Cycle life 10,000 times
Contact resistance 50m Ohm Max.
Salt fog 24H
Rated current&voltage 1A~10A/12V(can customized)
Applications PCB,power ,charging equipment
Certificate ISO9001/ROHS/REACH/MSDS/SGS
Packing 1000pcs/PE bag(or according to customer requirements)
Payment Term T/T
Payment method T/T,PayPal,
Freight Air,Sea,Express
Sample Lead Time Inventory simple 2-3day /customizd simple3-5day
Production Lead Time 7-10 day
Made For America,Europe,Asia,South African
Trade Term EXW,FOB,CIF
Service High quality with reasonable price.
OEM serivce, any special size, color, designs are acceptable.
Original sample can be re-made.



1. PLATING

1.1) Plunger: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;

1.2) Barrel: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;

1.3) Spring: SUS304, 1~3 micro inch Au;

2. Rated voltage (Per Contact): 12 V;

3. Rated Current (Per Contact): 1.0A-10.0A;

4. Insulation Resistance: 50MΩ Minimum;

5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;

6. Contact Resistance: 30 mΩ maximum before test and 50mΩ maximum after test at Pogo pin working stroke;

7. Recommended Working Stroke & Force:

7.1) Spring Force:30gf~300gf ;

8. Mechanical life:

8.1) Mechanical life: 10,000 Cycles;

9. Working Temperature Range:-30~85;

10. Salt Spray: 24hours;
11. Female pogo pin connector, male pogo pin connector,

12. Free sample with high class precision, 0.01mm precision

13. High recycling, Large Current ,Low MOQ, Low-Resistance

14. Standard & Non-Standard Pogo pin connector

15. OEM / ODM , Can be custom Designed

16. One Row, two rows, three rows

17. Surface Mount Soldering, Double Head, Flat Head

18. Water proof



Production Workshop & Testing Equipments

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



Product Structure & Production Flow

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



Application:

keyboard Palladium-Nickel Solder Magnetic Pogo Pin
Electronic Products Plated Gold Screw Type RF Pogo Pin
Battery SUS 304 Solder Pogo Pin RF Connector
Smart Watch Silver Spring DIP Spring Loaded Pin
LED Steel DIP Contact Pin
Amphenol Ni Plating Screw Type RF Pogo Pin
Aerospace Gold Plated Solder Pogo-Pin Docking Connector
PCB Mounted Au Plating DIP Pogo Pin Socket

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Advantages

1. Price: Competitive factory price with good quality.

2. Service:

    2.1> Short lead time ,7-10 working days ,or according your quantity

    2.2> 100% on time delivery to our dear customers

3. Low MOQ

    3.1> pcs rapid prototype sample is available

4. Near Shenzhen and HK, its convenient for transportation.

5. OEM is available ,and also welcome ODM

6. Quality:

    Good experience and technology in manufacturing pogo pin, some engineers have more than 10 years experience in producing various kinds of precision parts, so could offer good technology support to customers

7. Advanced measurement equipments

     Make sure all the requirement from our dear customers will be measurable.

8. 100% inspection before shipment.



Quality Assurance

1. IQC: Incoming material control to make sure all the raw materials are qualified.

2. IPQC:

    2.1> Operators follow the daily check list to check the machines to make sure they are in good conditions, and follow the spec to make products

    2.2>  Use qualified operators and correct parameters to make sure good quality.

    2.3> Technicians / team leaders online check the quality.

    2.4> IQPC according to the quality assurance procedure to check the quality.

3. OQC : QC 100% quality check after production with testing machines



pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



Procedures of order

1. Please send us your drawing or sample

2. We review the drawing or sample , compare with our capability

3. We will provide you with a design if need

4. If you are satisfied with our design , we will make the corresponding sample and send it to you

5. If you are ok on the samples, please issue an order and pay 30% deposit of the total amount in advance. We will then start to make the formal mass production of your order.

6. We will deliver the finished goods to the dedicated location.

7. You pay the balance after seeing the B/L copy.



pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Packing & Delivery



Packing Details:

Anti-rust Oil + Plastic bag + Carton,/ reel tape package, or clients' requirements

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts



Delivery Details:

1. Fedex / UPS / DHL / TNT for examples

2. By air or by sea for batch goods

3. Customer designated freight forwarding



Delivery Time:

7-10 working days, depends on customers' order quantity and other requirements



Main Markets:

North America, South America, East Europe, West Europe , North Europe, South Europe, South Asia

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Cusotmer Vist & Exhibition

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

pogo pin,pogo pin connector,magnetic pogo pin connectors,cnc parts

Contact Information:

pogo pin connector



2Pin 2.54mm Pitch 4.5mm Length  Pogo Pin Connector



Welcome to visit our website for more products in link : www.pogopin-connectors.com



Welcome to visit our booth 9G33 at Hall 9, Hongkong Global Source Exhbition from Apr 11 to Apr 14 , 2019.
