|Place of Origin:||Shenzhen|
|Model Number:||SMT,DIP,Double Heads,Screw,Rolling,Right Angle|
|Minimum Order Quantity:||1|
|Price:||0.1 ~ 1 USD/pcs|
|Packaging Details:||1000 pcs/bag, or reel tape , or per customer demand|
|Delivery Time:||7~10 days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500,000 pcs / day|
|Material:||C3604 , SUS304,Gold Plating||Length:||1.4mm To 20mm|
|Spring Force:||30gf To 200gf||OEM/ODM:||OK|
|Type:||SMT,DIP,Double Heads,Screw,Rolling Etc||Gold Plating:||1uin To 40uin|
|Current Rate:||1A To 10A||Ristance:||50 MOhm|
|Dimension:||Standard And Non-standard||Application:||TV, Computer,Tablet Etc|

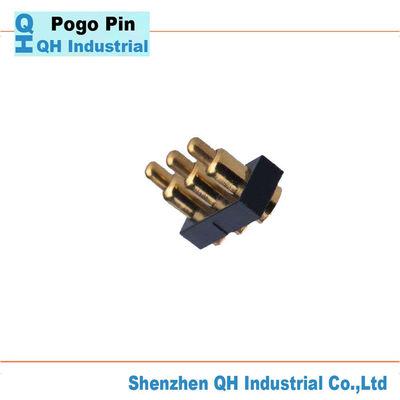

3Pin 2.5mm Pitch Pogo Pin Connector
Housing Dimension Table, Pitch can be as below.
Pogo Pin can be SMT,DIP,Doubel Heads,Right Angle, Soldered ,Screw,Rolling types etc, drawings can be as below.
Double Heads Pogo Pin
DIP Pogo Pin
High Current Rate Pogo Pin
Right Angle Pogo Pin
Female Pogo Pin
Different type of pogo pin
Business Contact : Yumi:
Cellphone & Wechat : 178 2073 0100
QQ: 3507 276 772
Skype: 178 2073 0100
|Size||Depends on customer requirements|
|Plated||Gold palted(10U")(can customized)|
|Cycle life||10,000 times|
|Contact resistance||50m Ohm Max.|
|Rated current&voltage||1A~10A/12V(can customized)|
|Applications||PCB,power ,charging equipment|
|Packing||1000pcs/PE bag(or according to customer requirements)|
|Sample Lead Time||Inventory simple 2-3day /customizd simple3-5day|
|Production Lead Time||7-10 day|
|Made For||America,Europe,Asia,South African|
|Service||High quality with reasonable price.|
|OEM serivce, any special size, color, designs are acceptable.|
|Original sample can be re-made.|
1.1) Plunger: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;
1.2) Barrel: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;
1.3) Spring: SUS304, 1~3 micro inch Au;
2. Rated voltage (Per Contact): 12 V;
3. Rated Current (Per Contact): 1.0A-10.0A;
4. Insulation Resistance: 50MΩ Minimum;
5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;
6. Contact Resistance: 30 mΩ maximum before test and 50mΩ maximum after test at Pogo pin working stroke;
7. Recommended Working Stroke & Force:
7.1) Spring Force:30gf~300gf ;
8. Mechanical life:
8.1) Mechanical life: 10,000 Cycles;
9. Working Temperature Range:-30~85℃;
10. Salt Spray: 24hours;
11. Female pogo pin connector, male pogo pin connector,
12. Free sample with high class precision, 0.01mm precision
13. High recycling, Large Current ,Low MOQ, Low-Resistance
14. Standard & Non-Standard Pogo pin connector
15. OEM / ODM , Can be custom Designed
16. One Row, two rows, three rows
17. Surface Mount Soldering, Double Head, Flat Head
18. Water proof
