|Place of Origin:||Shenzhen|
|Model Number:||SMT,DIP,Double Heads,Screw,Rolling,Right Angle|
|Minimum Order Quantity:||1|
|Price:||0.1 ~ 1 USD/pcs|
|Packaging Details:||1000 pcs/bag, or reel tape , or per customer demand|
|Delivery Time:||7~10 days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500,000 pcs / day|
|Material:||C3604 , SUS304,Gold Plating||Length:||1.4mm To 20mm|
|Spring Force:||30gf To 200gf||OEM/ODM:||OK|
|Type:||SMT,DIP,Double Heads,Screw,Rolling Etc||Gold Plating:||1uin To 40uin|
|Current Rate:||1A To 10A||Ristance:||50 MOhm|
|Dimension:||Standard And Non-standard||Application:||TV, Computer,Tablet Etc|

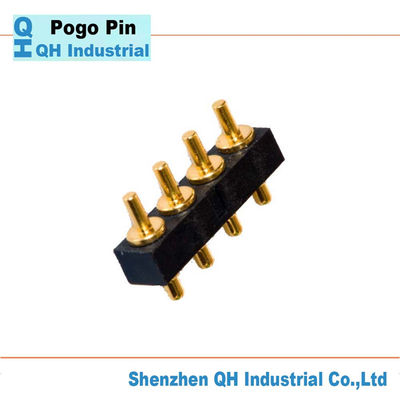

4Pin 2.54mm Pitch Pogo Pin Connector
Housing Dimension Table, Pitch can be as below.
Pogo Pin can be SMT,DIP,Doubel Heads,Right Angle, Soldered ,Screw,Rolling types etc, drawings can be as below.
Double Heads Pogo Pin
DIP Pogo Pin
High Current Rate Pogo Pin
Right Angle Pogo Pin
Female Pogo Pin
Different type of pogo pin
Business Contact : Yumi:
Cellphone & Wechat : 178 2073 0100
QQ: 3507 276 772
Skype: 178 2073 0100
|Size||Depends on customer requirements|
|Plated||Gold palted(10U")(can customized)|
|Cycle life||10,000 times|
|Contact resistance||50m Ohm Max.|
|Rated current&voltage||1A~10A/12V(can customized)|
|Applications||PCB,power ,charging equipment|
|Packing||1000pcs/PE bag(or according to customer requirements)|
|Sample Lead Time||Inventory simple 2-3day /customizd simple3-5day|
|Production Lead Time||7-10 day|
|Made For||America,Europe,Asia,South African|
|Service||High quality with reasonable price.|
|OEM serivce, any special size, color, designs are acceptable.|
|Original sample can be re-made.|
1.1) Plunger: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;
1.2) Barrel: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;
1.3) Spring: SUS304, 1~3 micro inch Au;
2. Rated voltage (Per Contact): 12 V;
3. Rated Current (Per Contact): 1.0A-10.0A;
4. Insulation Resistance: 50MΩ Minimum;
5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;
6. Contact Resistance: 30 mΩ maximum before test and 50mΩ maximum after test at Pogo pin working stroke;
7. Recommended Working Stroke & Force:
7.1) Spring Force:30gf~300gf ;
8. Mechanical life:
8.1) Mechanical life: 10,000 Cycles;
9. Working Temperature Range:-30~85℃;
10. Salt Spray: 24hours;
11. Female pogo pin connector, male pogo pin connector,
12. Free sample with high class precision, 0.01mm precision
13. High recycling, Large Current ,Low MOQ, Low-Resistance
14. Standard & Non-Standard Pogo pin connector
15. OEM / ODM , Can be custom Designed
16. One Row, two rows, three rows
17. Surface Mount Soldering, Double Head, Flat Head
18. Water proof
Production Workshop & Testing Equipments
Product Structure & Production Flow
Battery Plating Gold One Row Pin Pogo Connector
Laptop C2700 Brass Solder Cup Test Probe
Mobile SUS Spring Double-Head Pogo Connector
PCB SUS 304 Right Angle Type Spring-Loaded Connector
mobile Phone Battery SWP Spring Single Head Pogo Pin Electrical Connector
Hiqh Recycling Y15 SMD Pogo Pin RF Connector
keyboard Ni plated Two rows Pogo Pin Programming Connector
Ethernet Ni Plating Screw Type Test Probe
Battery SUS Spring Double-Head Pogo Pin Connector
1. Price: Competitive factory price with good quality.
2.1> Short lead time ,7-10 working days ,or according your quantity
2.2> 100% on time delivery to our dear customers
3. Low MOQ
3.1> pcs rapid prototype sample is available
4. Near Shenzhen and HK, its convenient for transportation.
5. OEM is available ,and also welcome ODM
Good experience and technology in manufacturing pogo pin, some engineers have more than 10 years experience in producing various kinds of precision parts, so could offer good technology support to customers
7. Advanced measurement equipments
Make sure all the requirement from our dear customers will be measurable.
8. 100% inspection before shipment.
1. IQC: Incoming material control to make sure all the raw materials are qualified.
2.1> Operators follow the daily check list to check the machines to make sure they are in good conditions, and follow the spec to make products
2.2> Use qualified operators and correct parameters to make sure good quality.
2.3> Technicians / team leaders online check the quality.
2.4> IQPC according to the quality assurance procedure to check the quality.
3. OQC : QC 100% quality check after production with testing machines
Procedures of order
1. Please send us your drawing or sample
2. We review the drawing or sample , compare with our capability
3. We will provide you with a design if need
4. If you are satisfied with our design , we will make the corresponding sample and send it to you
5. If you are ok on the samples, please issue an order and pay 30% deposit of the total amount in advance. We will then start to make the formal mass production of your order.
6. We will deliver the finished goods to the dedicated location.
7. You pay the balance after seeing the B/L copy.
Packing & Delivery
Anti-rust Oil + Plastic bag + Carton,/ reel tape package, or clients' requirements
1. Fedex / UPS / DHL / TNT for examples
2. By air or by sea for batch goods
3. Customer designated freight forwarding
7-10 working days, depends on customers' order quantity and other requirements
North America, South America, East Europe, West Europe , North Europe, South Europe, South Asia
