Hot Sale Customized Pogo Pins Connectors Right Angle Spring Loaded Contact Gold Plating Pogo Pin Socket Connector

Housing Dimension Table, Pitch can be as below.

Pogo Pin can be SMT,DIP,Doubel Heads,Right Angle, Soldered ,Screw,Rolling types etc, drawings can be as below.

SMT Type

Double Heads Pogo Pin

DIP Pogo Pin

High Current Rate Pogo Pin

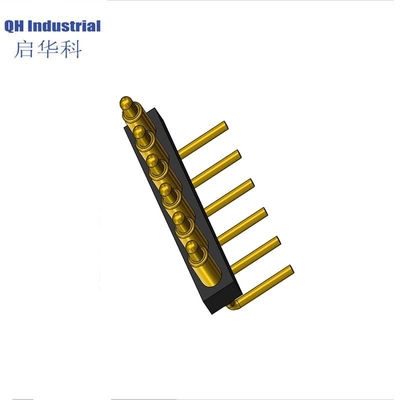

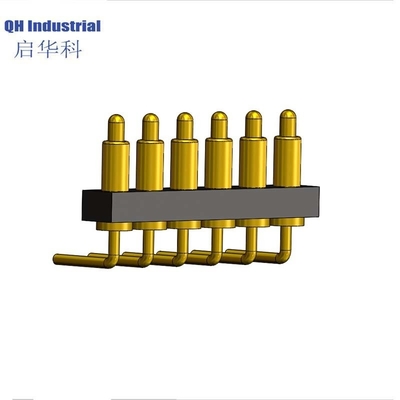

Right Angle Pogo Pin

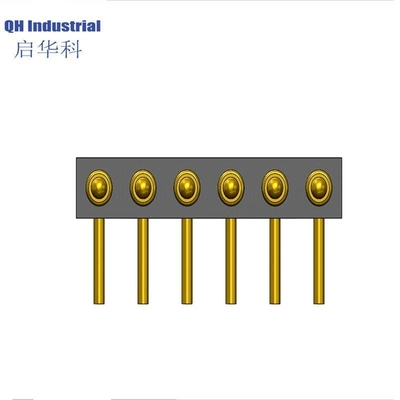

Female Pogo Pin

Different type of pogo pin

Product Characteristics

1. PLATING

1.1) Plunger: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;

1.2) Barrel: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;

1.3) Spring: SUS304, 1~3 micro inch Au;

2. Rated voltage (Per Contact): 12 V;

3. Rated Current (Per Contact): 1.0A-10.0A;

4. Insulation Resistance: 50MΩ Minimum;

5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;

6. Contact Resistance: 30 mΩ maximum before test and 50mΩ maximum after test at Pogo pin working stroke;

7. Recommended Working Stroke & Force:

7.1) Spring Force:30gf~300gf ;

8. Mechanical life:

8.1) Mechanical life: 10,000 Cycles;

9. Working Temperature Range:-30~85℃;

10. Salt Spray: 24hours;
11. Female pogo pin connector, male pogo pin connector,

12. Free sample with high class precision, 0.01mm precision

13. High recycling, Large Current ,Low MOQ, Low-Resistance

14. Standard & Non-Standard Pogo pin connector

15. OEM / ODM , Can be custom Designed

16. One Row, two rows, three rows

17. Surface Mount Soldering, Double Head, Flat Head

18. Water proof
